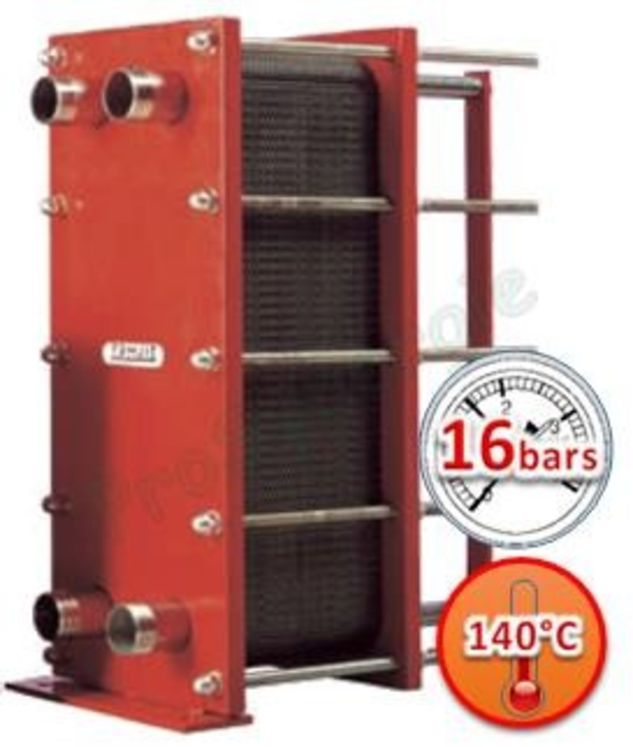

Echangeur Z3 16bars plaques Inox démontables joint EPDM 140°C - 39m3/h
Marque : Zilmet
Référence : SITE009842
Appro. prévu sous 4 à 10 jours
/ Pièce
-
+
d'éco-contribution
En savoir plus
Caractéristiques techniques :
| Pression de service maximale | 16 bar |
| Température de service maximale | 110°C / 140°C |
| Matérial de plaques | Acier inoxydable 316 L |
| Matérial des raccords | Acier au fer ou Acier inoxydable 316 L en option |
| Raccords coté eau | 2" F |
| Joints | EPDM (110 °C) - NBR (110°C) en option |
| Nombre de plaques | 4 - 101 |
Poids et mesures :
| Art.Nr. | Nb. plaque(s) | Raccordement | Long. Racc. | Hauteur C | Largeur A | Distance D | Distance B | Epaisseur échangeur | Epaisseur Total | Ø Tirant | Surface d'échange (m²) | P (bar) service | P (bar) d'essais | Poid (Kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1730600700 | 7 | 4 x Inox G 2"M | L=70mm | 780 | 340 | 640 | 145 | 83.1 | 350 | M16 | 0.91 | 16 | 21 | 125.60 |
| 1730600900 | 9 | 4 x Inox G 2"M | L=70mm | 780 | 340 | 640 | 145 | 89.7 | 350 | M16 | 1.17 | 16 | 21 | 127.20 |
| 1730601100 | 11 | 4 x Inox G 2"M | L=70mm | 780 | 340 | 640 | 145 | 96.3 | 350 | M16 | 1.43 | 16 | 21 | 128.80 |
| 1730601300 | 13 | 4 x Inox G 2"M | L=70mm | 780 | 340 | 640 | 145 | 102.9 | 350 | M16 | 1.69 | 16 | 21 | 130.40 |
| 1730601500 | 15 | 4 x Inox G 2"M | L=70mm | 780 | 340 | 640 | 145 | 109.5 | 350 | M16 | 1.95 | 16 | 21 | 132.00 |
| 1730601700 | 17 | 4 x Inox G 2"M | L=70mm | 780 | 340 | 640 | 145 | 116.1 | 350 | M16 | 2.21 | 16 | 21 | 133.60 |
| 1730601900 | 19 | 4 x Inox G 2"M | L=70mm | 780 | 340 | 640 | 145 | 122.7 | 350 | M16 | 2.47 | 16 | 21 | 135.20 |
| 1730602100 | 21 | 4 x Inox G 2"M | L=70mm | 780 | 340 | 640 | 145 | 129.3 | 350 | M16 | 2.73 | 16 | 21 | 136.80 |
| 1730602300 | 23 | 4 x Inox G 2"M | L=70mm | 780 | 340 | 640 | 145 | 135.9 | 350 | M16 | 2.99 | 16 | 21 | 138.40 |
| 1730602500 | 25 | 4 x Inox G 2"M | L=70mm | 780 | 340 | 640 | 145 | 142.5 | 350 | M16 | 3.25 | 16 | 21 | 140.00 |
| 1730602700 | 27 | 4 x Inox G 2"M | L=70mm | 780 | 340 | 640 | 145 | 149.1 | 350 | M16 | 3.51 | 16 | 21 | 141.60 |
| 1730602900 | 29 | 4 x Inox G 2"M | L=70mm | 780 | 340 | 640 | 145 | 155.7 | 350 | M16 | 3.77 | 16 | 21 | 143.20 |
| 1730603100 | 31 | 4 x Inox G 2"M | L=70mm | 780 | 340 | 640 | 145 | 162.3 | 350 | M16 | 4.03 | 16 | 21 | 144.80 |
| 1730603300 | 33 | 4 x Inox G 2"M | L=70mm | 780 | 340 | 640 | 145 | 168.9 | 350 | M16 | 4.29 | 16 | 21 | 146.40 |
| 1730603500 | 35 | 4 x Inox G 2"M | L=70mm | 780 | 340 | 640 | 145 | 175.5 | 350 | M16 | 4.55 | 16 | 21 | 148.00 |
| 1730603700 | 37 | 4 x Inox G 2"M | L=70mm | 780 | 340 | 640 | 145 | 182.1 | 350 | M16 | 4.81 | 16 | 21 | 149.60 |
| 1730603900 | 39 | 4 x Inox G 2"M | L=70mm | 780 | 340 | 640 | 145 | 188.7 | 350 | M16 | 5.07 | 16 | 21 | 151.20 |
| 1730604100 | 41 | 4 x Inox G 2"M | L=70mm | 780 | 340 | 640 | 145 | 195.3 | 350 | M16 | 5.33 | 16 | 21 | 152.80 |
| 1730604300 | 43 | 4 x Inox G 2"M | L=70mm | 780 | 340 | 640 | 145 | 201.9 | 350 | M16 | 5.59 | 16 | 21 | 154.40 |
| 1730604500 | 45 | 4 x Inox G 2"M | L=70mm | 780 | 340 | 640 | 145 | 208.5 | 350 | M16 | 5.85 | 16 | 21 | 156.00 |
| 1730604700 | 47 | 4 x Inox G 2"M | L=70mm | 780 | 340 | 640 | 145 | 215.1 | 350 | M16 | 6.11 | 16 | 21 | 157.60 |
| 1730604900 | 49 | 4 x Inox G 2"M | L=70mm | 780 | 340 | 640 | 145 | 221.7 | 350 | M16 | 6.37 | 16 | 21 | 159.20 |
| 1730605100 | 51 | 4 x Inox G 2"M | L=70mm | 780 | 340 | 640 | 145 | 228.3 | 350 | M16 | 6.63 | 16 | 21 | 160.80 |
| 1730605300 | 53 | 4 x Inox G 2"M | L=70mm | 780 | 340 | 640 | 145 | 234.9 | 550 | M16 | 6.89 | 16 | 21 | 162.40 |
| 1730605500 | 55 | 4 x Inox G 2"M | L=70mm | 780 | 340 | 640 | 145 | 241.5 | 550 | M16 | 7.15 | 16 | 21 | 164.00 |
| 1730605700 | 57 | 4 x Inox G 2"M | L=70mm | 780 | 340 | 640 | 145 | 248.1 | 550 | M16 | 7.41 | 16 | 21 | 165.60 |
| 1730605900 | 59 | 4 x Inox G 2"M | L=70mm | 780 | 340 | 640 | 145 | 254.7 | 550 | M16 | 7.67 | 16 | 21 | 167.20 |
| 1730606100 | 61 | 4 x Inox G 2"M | L=70mm | 780 | 340 | 640 | 145 | 261.3 | 550 | M16 | 7.93 | 16 | 21 | 168.80 |
| 1730606300 | 63 | 4 x Inox G 2"M | L=70mm | 780 | 340 | 640 | 145 | 267.9 | 550 | M16 | 8.19 | 16 | 21 | 170.40 |
| 1730606500 | 65 | 4 x Inox G 2"M | L=70mm | 780 | 340 | 640 | 145 | 274.5 | 550 | M16 | 8.45 | 16 | 21 | 172.00 |
| 1730606700 | 67 | 4 x Inox G 2"M | L=70mm | 780 | 340 | 640 | 145 | 281.1 | 550 | M16 | 8.71 | 16 | 21 | 173.60 |
| 1730606900 | 69 | 4 x Inox G 2"M | L=70mm | 780 | 340 | 640 | 145 | 287.7 | 550 | M16 | 8.97 | 16 | 21 | 175.20 |
| 1730607100 | 71 | 4 x Inox G 2"M | L=70mm | 780 | 340 | 640 | 145 | 294.3 | 550 | M16 | 9.23 | 16 | 21 | 176.80 |
| 1730607300 | 73 | 4 x Inox G 2"M | L=70mm | 780 | 340 | 640 | 145 | 300.9 | 550 | M16 | 9.49 | 16 | 21 | 178.40 |
| 1730607500 | 75 | 4 x Inox G 2"M | L=70mm | 780 | 340 | 640 | 145 | 307.5 | 550 | M16 | 9.75 | 16 | 21 | 180.00 |
| 1730607700 | 77 | 4 x Inox G 2"M | L=70mm | 780 | 340 | 640 | 145 | 314.1 | 650 | M16 | 10.01 | 16 | 21 | 181.60 |
| 1730607900 | 79 | 4 x Inox G 2"M | L=70mm | 780 | 340 | 640 | 145 | 320.7 | 650 | M16 | 10.27 | 16 | 21 | 183.20 |
| 1730608100 | 81 | 4 x Inox G 2"M | L=70mm | 780 | 340 | 640 | 145 | 327.3 | 650 | M16 | 10.53 | 16 | 21 | 184.80 |
| 1730608300 | 83 | 4 x Inox G 2"M | L=70mm | 780 | 340 | 640 | 145 | 333.9 | 650 | M16 | 10.79 | 16 | 21 | 186.40 |
| 1730608500 | 85 | 4 x Inox G 2"M | L=70mm | 780 | 340 | 640 | 145 | 340.5 | 650 | M16 | 11.05 | 16 | 21 | 188.00 |
| 1730608700 | 87 | 4 x Inox G 2"M | L=70mm | 780 | 340 | 640 | 145 | 347.1 | 650 | M16 | 11.31 | 16 | 21 | 189.60 |
| 1730608900 | 89 | 4 x Inox G 2"M | L=70mm | 780 | 340 | 640 | 145 | 353.7 | 650 | M16 | 11.57 | 16 | 21 | 191.20 |
| 1730609100 | 91 | 4 x Inox G 2"M | L=70mm | 780 | 340 | 640 | 145 | 360.3 | 650 | M16 | 11.83 | 16 | 21 | 192.80 |
| 1730609300 | 93 | 4 x Inox G 2"M | L=70mm | 780 | 340 | 640 | 145 | 366.9 | 650 | M16 | 12.09 | 16 | 21 | 194.40 |
| 1730609500 | 95 | 4 x Inox G 2"M | L=70mm | 780 | 340 | 640 | 145 | 373.5 | 650 | M16 | 12.35 | 16 | 21 | 196.00 |
| 1730609700 | 97 | 4 x Inox G 2"M | L=70mm | 780 | 340 | 640 | 145 | 380.1 | 650 | M16 | 12.61 | 16 | 21 | 197.60 |
| 1730609900 | 99 | 4 x Inox G 2"M | L=70mm | 780 | 340 | 640 | 145 | 386.7 | 650 | M16 | 12.87 | 16 | 21 | 199.20 |
| 1730610100 | 101 | 4 x Inox G 2"M | L=70mm | 780 | 340 | 640 | 145 | 393.3 | 650 | M16 | 13.13 | 16 | 21 | 200.80 |
| 1730610300 | 103 | 4 x Inox G 2"M | L=70mm | 780 | 340 | 640 | 145 | 399.9 | 650 | M16 | 13.39 | 16 | 21 | 202.40 |
| 1730610500 | 105 | 4 x Inox G 2"M | L=70mm | 780 | 340 | 640 | 145 | 406.5 | 650 | M16 | 13.65 | 16 | 21 | 204.00 |
| 1730610700 | 107 | 4 x Inox G 2"M | L=70mm | 780 | 340 | 640 | 145 | 413.1 | 650 | M16 | 13.91 | 16 | 21 | 205.60 |
| 1730610900 | 109 | 4 x Inox G 2"M | L=70mm | 780 | 340 | 640 | 145 | 419.7 | 650 | M16 | 14.17 | 16 | 21 | 207.20 |
| 1730611100 | 111 | 4 x Inox G 2"M | L=70mm | 780 | 340 | 640 | 145 | 426.3 | 650 | M16 | 14.43 | 16 | 21 | 208.80 |
| 1730611300 | 113 | 4 x Inox G 2"M | L=70mm | 780 | 340 | 640 | 145 | 432.9 | 650 | M16 | 14.69 | 16 | 21 | 210.40 |
| 1730611500 | 115 | 4 x Inox G 2"M | L=70mm | 780 | 340 | 640 | 145 | 439.5 | 650 | M16 | 14.95 | 16 | 21 | 212.00 |
| 1730611700 | 117 | 4 x Inox G 2"M | L=70mm | 780 | 340 | 640 | 145 | 446.1 | 650 | M16 | 15.21 | 16 | 21 | 213.60 |
| 1730611900 | 119 | 4 x Inox G 2"M | L=70mm | 780 | 340 | 640 | 145 | 452.7 | 650 | M16 | 15.47 | 16 | 21 | 215.20 |
| 1730612100 | 121 | 4 x Inox G 2"M | L=70mm | 780 | 340 | 640 | 145 | 459.3 | 650 | M16 | 15.73 | 16 | 21 | 216.80 |
| 1730612300 | 123 | 4 x Inox G 2"M | L=70mm | 780 | 340 | 640 | 145 | 465.9 | 650 | M16 | 15.99 | 16 | 21 | 218.40 |
| 1730612500 | 125 | 4 x Inox G 2"M | L=70mm | 780 | 340 | 640 | 145 | 472.5 | 650 | M16 | 16.25 | 16 | 21 | 220.00 |
